Pegasus Astro FlatMaster Neo WIFI

0.00 $

Technical Specification

Type Servo (0-270 degrees) with Led Light Panel (White)
Dimmable Yes – (0-100%)
Material Aircraft Grade Aluminium
Manual Push Button Different brightness levels
Usable diameter of circle 125mm
Power requirements 5V DC provided by USB mini cable (1.5A max current)
Size Diameter 250mm x 8mm thickness
Weight 400g

Rupture de stock

For more information, contact us

UGS : 02peg00031 Catégories : , , , , Étiquette :

Description

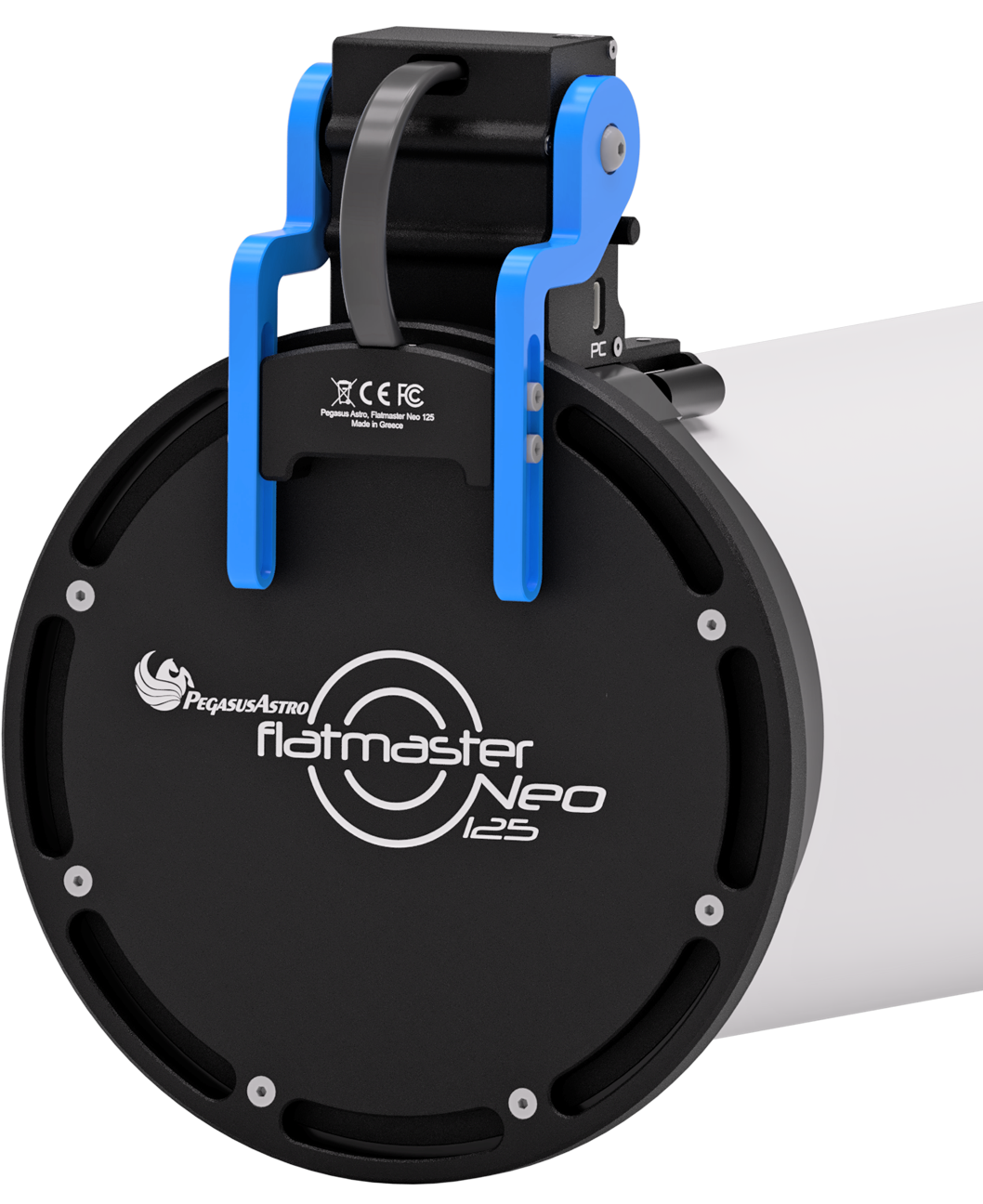

Our new retractable LED flat-field panel delivers a uniform illumination source for telescopes up to 125mm, ensuring high-quality flat-field frames for astrophotography and photometric captures.

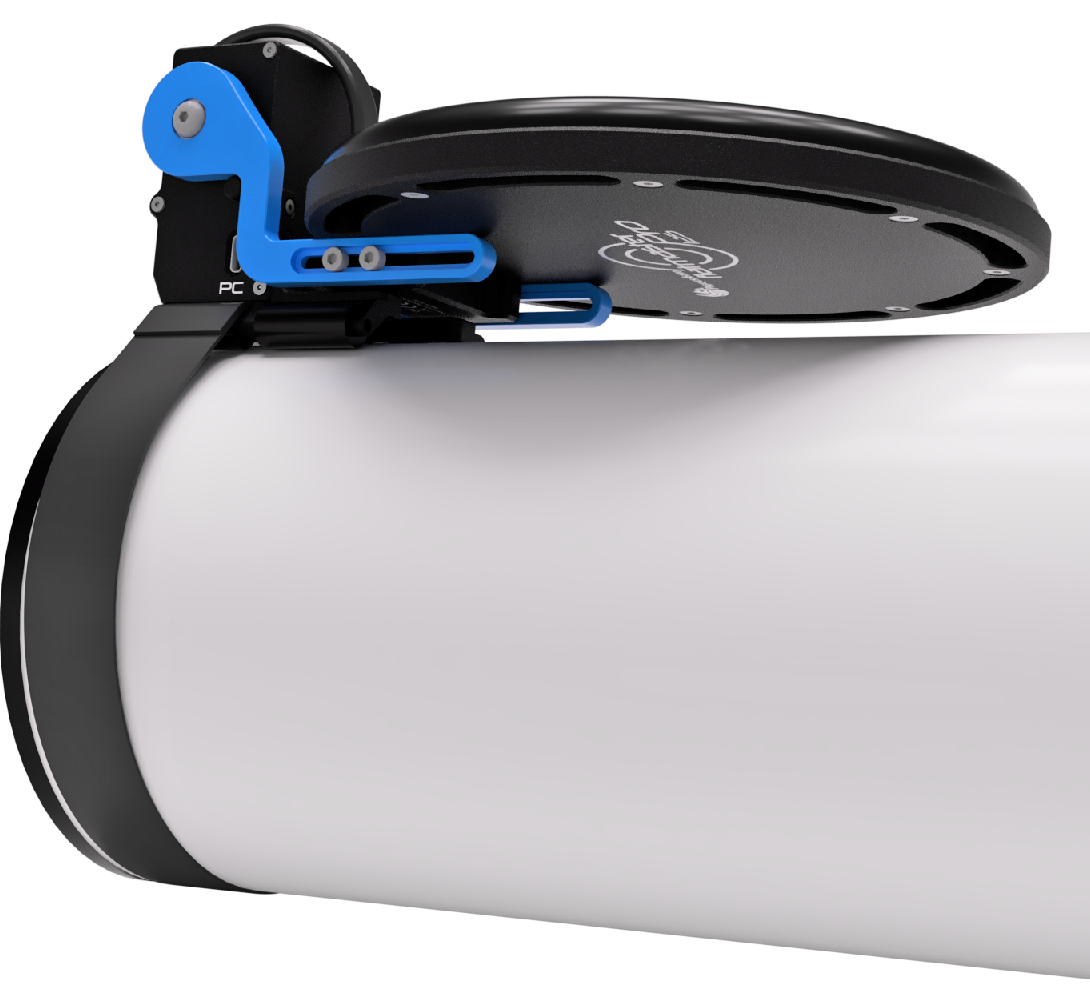

Its adjustable lid can be precisely positioned between 0° and 270°, doubling as a protective cover against dust and moisture for your telescope lens.

Crafted from lightweight, aircraft-grade aluminum, the Flatmaster Neo offers a durable and robust design to safeguard your telescope lens.

Dimmable Led Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.

The Flatmaster 150L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters

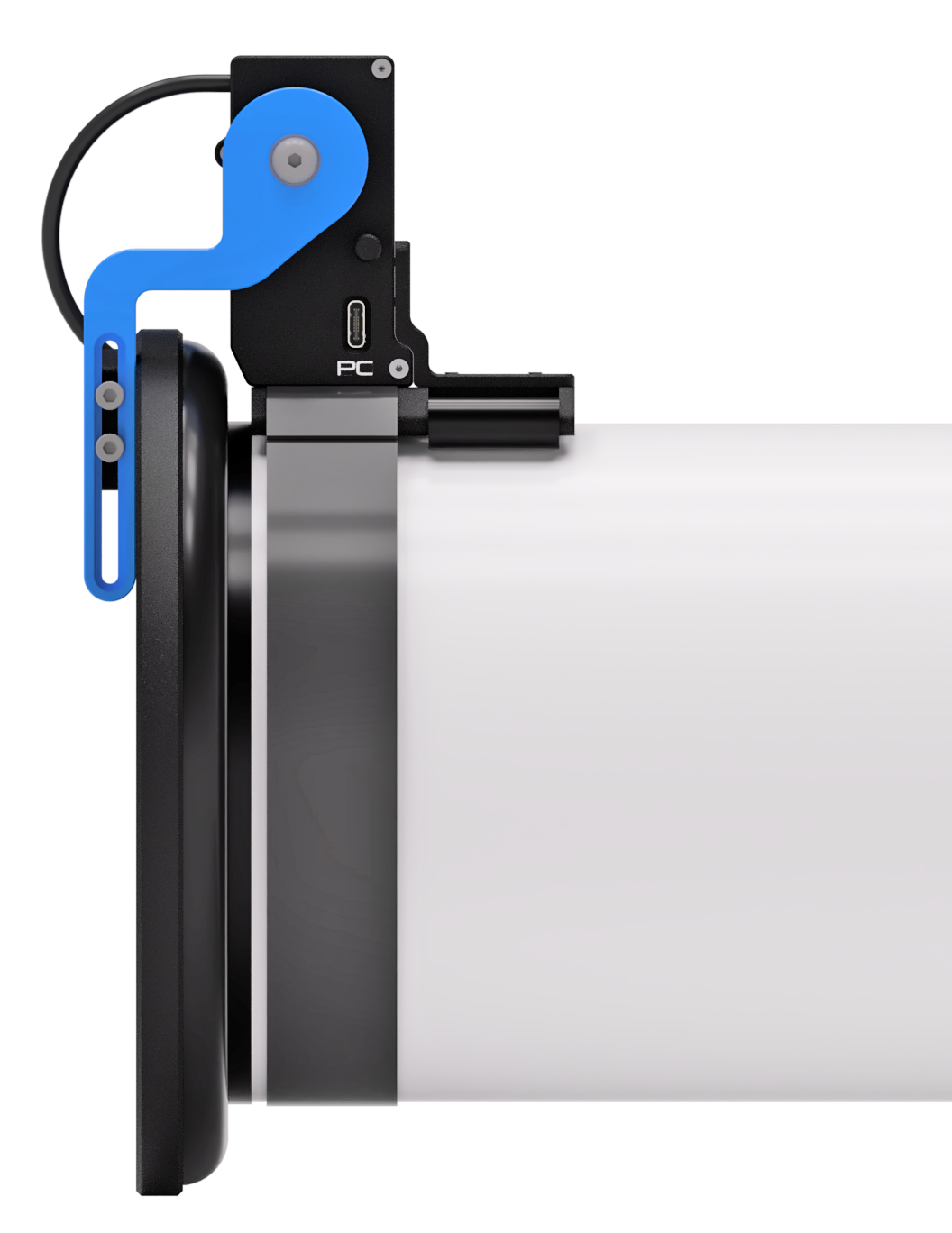

The panel can be remotely controlled and adjusted between 0° and 270°. To prevent collisions with obstacles, you can set a custom maximum opening angle.

Designed to fit any telescope up to 125mm, FlatMaster Neo features a specialized silicone flange that ensures a light- and dust-proof seal around your optical elements.

Additionally, this flange helps shield the surrounding area (e.g., in shared host observatory) when the LED is illuminated during flat-frame calibration.

Wi-Fi Control and Standalone Dashboard
The device features built-in Wi-Fi, allowing you to connect and control it either via its own Wi-Fi hotspot or as a client on an existing network.

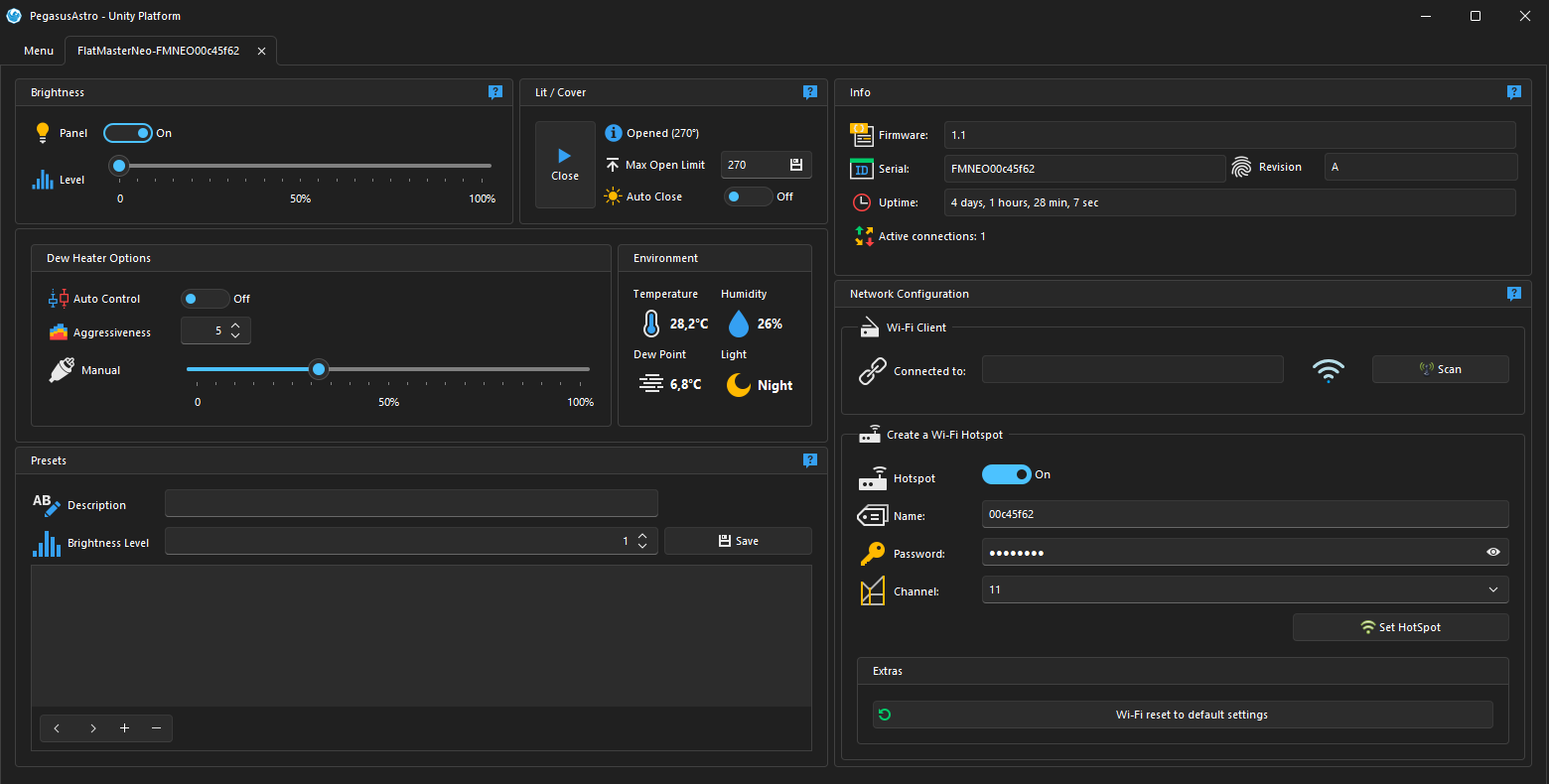

Its integrated web dashboard is accessible from any mobile application, providing seamless and intuitive control.

ASCOM and ASCOM Alpaca
The device is fully supported out of the box by ASCOM 7 & ASCOM Alpaca.
